500 W1000 W Nanosecond Pulsed Laser Cleaner Manufacturer
A high-power pulsed laser cleaning system (500/750/1000 W) for precision, automated cleaning across industries. Water-cooled, with 8 scan modes, multi-language support, and compact cleaning head (< 1.5 kg). Ideal for molds, rust removal, coatings, and fine metal parts.
Bogong Laser 500 / 750 / 1000 W Nanosecond Pulsed Laser Cleaning Machine
| Item | Bogong-500 | Bogong-750 | Bogong-1000 |
|---|---|---|---|
| Average Laser Power | ≥ 500 W | ≥ 750 W | ≥ 1000 W |
| Pulse Width | 10 – 500 ns | 30 – 500 ns | 10 – 500 ns |
| Max Monopulse Energy | 15 mJ – 50 mJ | 12 mJ | 50 mJ – 100 mJ |
| Repeat Frequency (kHz) | 1 – 3000 kHz | 1 – 1000 kHz | 1 – 3000 kHz |
| Power Regulation Range | 0 – 100 % (gradient adjustable) | 0 – 100 % | 0 – 100 % |
| Power Instability | < 5 % | < 5 % | < 5 % |
| Scan Modes Supported | 8 | 8 | 8 |
| Scan Range (L × W) | 0 – 145 mm adjustable | 0 – 175 mm adjustable | 0 – 145 mm adjustable |
| Cooling Method | Water cooling | Water cooling | Water cooling |
| Fiber Cable Length | 10 m | 10 m | 10 m |
Mechanical & Environmental Specs
| Item | Value |
|---|---|
| Supply Voltage | Single phase 220 V ± 10 %, 50/60 Hz AC |
| Power Consumption | ≤ 5000 W (Bogong-500) / ≤ 6000 W (Bogong-750) / ≤ 8000 W (Bogong-1000) |
| Working Temp Range | 5 °C to 40 °C |
| Humidity Limit | ≤ 80 % RH |
| Machine Size (L × W × H) | ≈ 1055 mm × 623 mm × 1105 mm |
| Package Size | ≈ 1230 mm × 750 mm × 1280 mm |
| Machine Weight | ≈ 250 kg |
| Packed Weight | ≈ 275 kg |
| Cleaning Head Weight | < 1.5 kg |
| Mode of Operation | Handheld / Automated |
| Language / Interface Support | 9 languages, Modbus communication, 8 scanning modes |
The 500-750-1000 W nanosecond pulsed laser cleaning machine is more than a tool — it’s a workhorse for modern factories. It brings together surgical precision and raw cleaning power so you can ditch tedious manual scrubbing in your mold shop, metal fab line, or surface prep bay. Choose 500, 750, or 1000 W, tweak your pulse settings, and this system adapts — able to remove thin coatings or penetrate heavy rust without wrecking the base material.

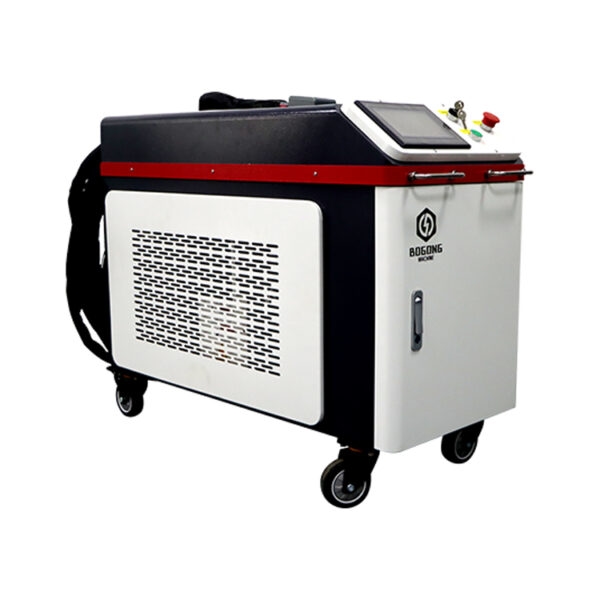

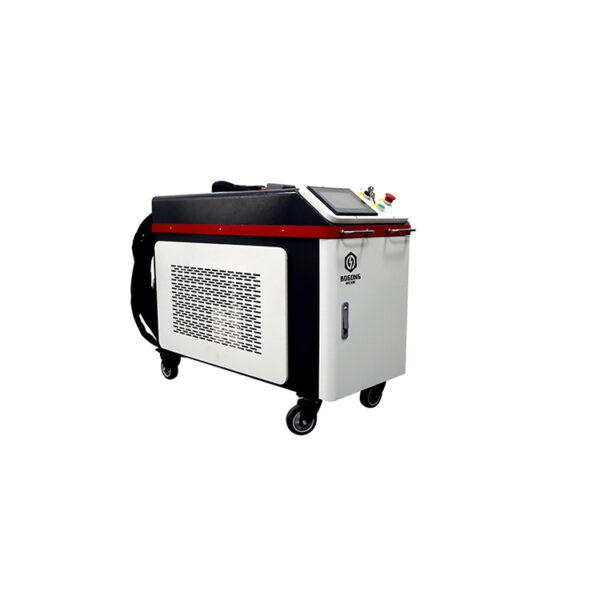

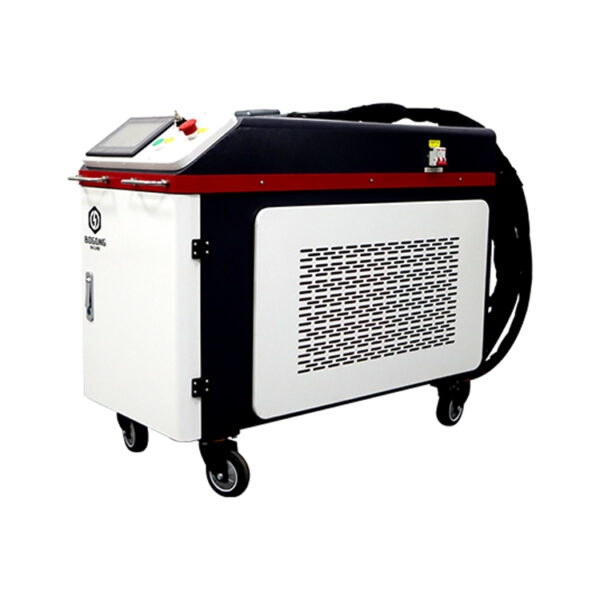

Designed in a rugged trolley cabinet, it balances mobility and stability (approx. 1055 × 623 × 1105 mm, ~250 kg). The rear compartment stores your cleaning head and accessories neatly, while the cleaning head itself weighs less than 1.5 kg — light enough to mount on a robot or swing by hand. Water cooling keeps it stable under load.
The system offers 8 scanning modes (customizable) and supports multiple interface languages. With Modbus connectivity, it integrates seamlessly into automated lines or PLC controls. You get monopulse energies from 15 to 50 mJ (or higher in the 1000 W model), pulse widths from 10 to 500 ns, and power control from 0 to 100 % with < 5 % instability.
Because the energy is evenly distributed in each pulse, the laser “bites” into coke, oxide, and contaminants efficiently while sparing the substrate. Use it for mold cleaning, large-area rust removal, paint and oil stripping, weld spatter, or general residue cleanup. It’s non-contact, needs no consumables, and offers full 360° coverage with minimal risk of damage.
In short: this pulsed laser cleaner sits at the sweet spot of finesse and force, giving operators a reliable, automated way to clean with consistency, speed, and safety — especially in high-stakes industrial settings.
